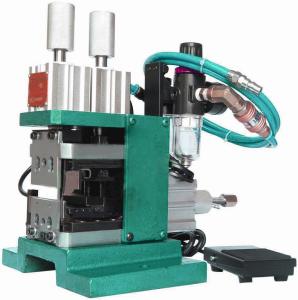

Pneumatic multi core wire peeling and twisting machine (peeling and twisting)LM-3FN

Pneumatic multi core wire peeling and twisting machine (peeling and twisting)LM-3FN

The models are mainly used for stripping twisting line of computer wire, telephone lines, power lines and other multi-strand wire, can be used only for stripping operations. Improvement of traditional semi-stripping twisting line or hand twisting, twisting multiple synchronized stripping work efficiency improved several times, and at the same time improving product quality, easy to adjust, the operation easier.

Products:
1. Gas-electric control, improved models, design advanced lines through the AWG # 18-32.
2. Rule Die seat with clip-line distance is short, so that the computer or a special short-term heart-line is easy to operate, and no burns or folders to the fingers into account.
3. Special structure of speed, all kinds of wire can be stripped and a half, full stripping, adjust easily.
4. Pole design, tangent peeling a shape, remove the cutter can be used single-handedly
Technical parameterModel: LM-3FN
The amount of air pressure: 4-7KG/CM2

Peel twist capacity: 1-10line /s

Peel twist length: 4.0-20mm
Peel Twist speed: 0.5-2.5s / times

Application of line diameter: AWG#18 ~ #32: AWG # 18 ~ # 32
Weight: 15KGS
Volume: 320 × 230 × 300 mm
This price does not includes the air pump. You need to prepare the air pump by yourself.

Pneumatic multi core wire peeling and twisting machine (peeling and twisting)LM-3FN Images
